Centrifugal pump
Time：2024-12-06 22:15 tags: Separation Equipment
Centrifugal pump is widely used in solids control system. It can be located before the desander, desilter and mud cleaner to transfer the drilling mud to the cyclone unit, equipped to the jut mud mixer unit as the mud mixing pump. the centrifugal pump also can be used as the trip pump for mud supplement under well and the supercharging pump to transfer the drilling fluids to high pressure rig mud pump. The solids contained in drilling fluids request the centrifugal pump wet contacting parts with excellent wear resistance and high efficiency on flow rate. Based on the material adopted and structure design, BestOilTech centrifugal pump provide users solution for both aforementioned problems. Furthermore, the spare parts of BestOilTech centrifugal pump are interchangeable with international brand pump for customers’ parts sourcing convenience.
Centrifugal Pump Features and Advantages:
1. Pump impeller made from hard ductile iron alloy, extended lifetime.
2. Pump casing made from hard ductile iron alloy, increased abrasion resistant capability.
3. High quality no-adjustment mechanical seal to provide zero leakage and longer operation life.
4. All bearings used from top brand for reliable operation.
5. Replaceable shaft sleeve prevents shaft wear.
6. Wide open-vane impeller creates lower axial thrust for improving bearing life, easy for installation and maintenance.

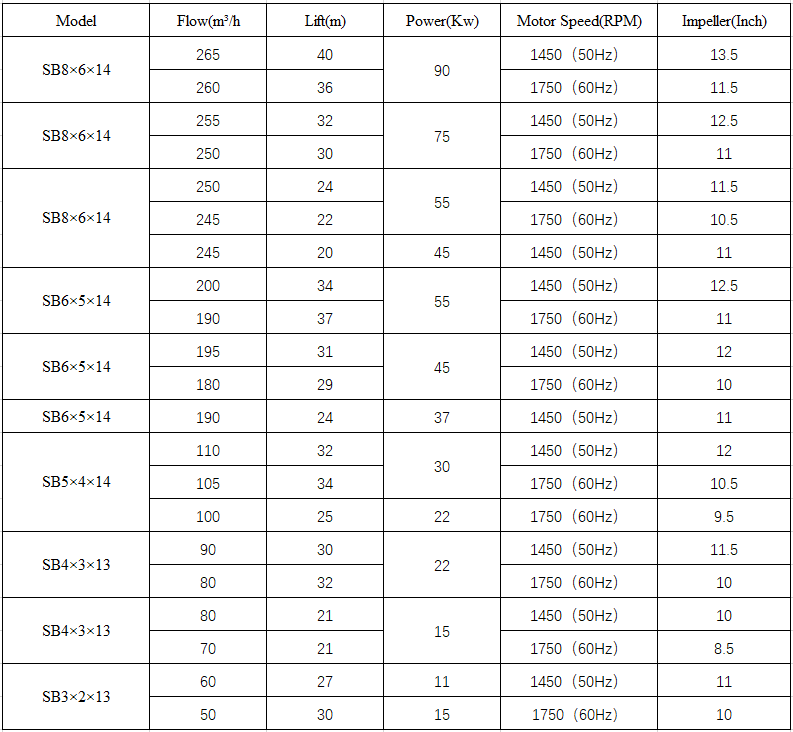

Centrifugal Pump Technical Parameters:
