Shale Shaker
Time：2024-12-06 22:16 tags: Separation Equipment
Shale Shaker is the first stage solids control equipment in drilling fluids recycling system; it is also the most important equipment. To a large extent, the performance of shale shaker decides the working efficiencies of whole solids control system. Besides single shale shaker, BestOilTech also could offer tandem shakers and triplicate shakers on single skid according to customers’ requirements and also the connecting manifold and mud distributor. BestOilTech provides the most popular type Linear Motion shale shaker.
As the optimized design and stable performance, linear motion shale shaker now is the most popular model applied by the drilling contractors. Matching with BestOilTech own designed and manufactured shaker screen of different mesh number, BestOilTech linear motion shale shaker suites for customer’s various applications. Easy method to replace the screens greatly shortens the downtime. Shale shaker deck angle adjustable while running enable to achieve the proper solids conveyance and fluid end point. High G force and large screen area make sure the stable performance when treating the large flow drilling mud.
Linear Motion Shale Shaker Features & Benefits:

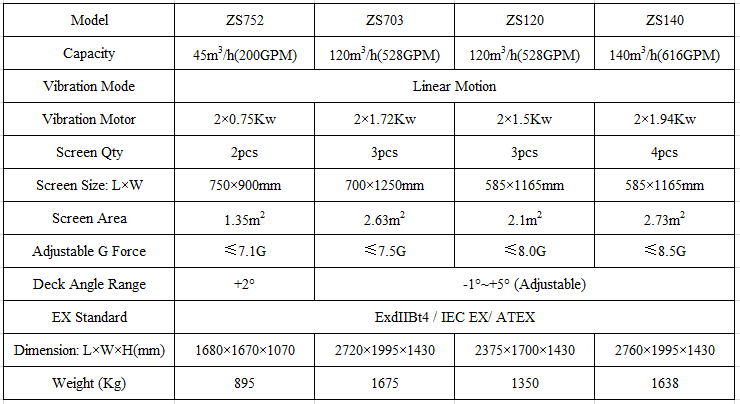

Technical Parameters：Linear Motion Shale Shaker Features & Benefits:
- Ajustable High G force for primary solids control or cuttings drying.
- Heat treatment on complete shale shaker deck.
- Vibrating Motor: IEC Ex, ATEX and UL Certified
- Electrical components: SIEMENS, Schneider Brand
- Shale Shaker Bottom Deck Material:Stainless Steel
- Wedge type design for easy and quick screen replacement
- Electric Shaker Deck angle adjustable while working
